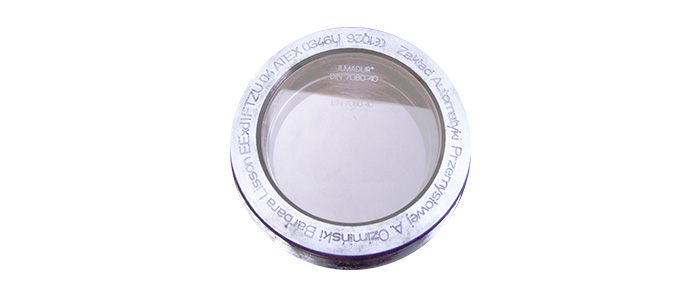

FLAMEPROOF EYEPIECE TYPE ZAP W04
CERTIFICATE: FTZU 04 ATEX 0346U
FEATURE OF APPROVAL: Ex I M2 Ex d I
Eyepiece type ZAP-W04 is designed for use in electrical explosion protection flameproof suitable for indoor methane and non-methane classified as "a", "b" or "c" methane explosion hazard and in headings with class "A" and "B" coal dust explosion hazard. The speculum is made in accordance with standards EN60079-0:2009, EN 60079-1:2008 and meets the requirements of the M2. Sight glass is mounted in the enclosure through the hole Φ 96 H6 and protected from the middle of the mounting plate mounted on four screws M8x35 pressure.
level of security: |
IP 54 |
Quality of work: |
Structural steel |
Working temperature: |
-20°C to +100°C |
Outer diameter: |
Ø 96mm f8 |
Mass: |
1kg |
The marking on the barrel of the viewport: |
"ZAP-W04 ZAP Ozimiński Sp. z o.o. I M2 Ex d I FTZU 04 ATEX 0346U" |
*We reserve the right to change parameters
