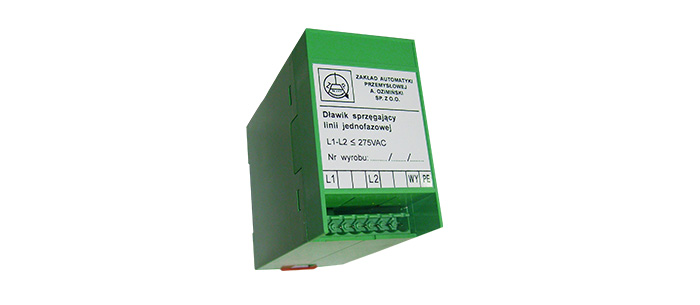

SINGLE-PHASE COUPLING LINE CHOKE DSL1-230

Zakład Automatyki Przemysłowej A. OZIMIŃSKI

Packing gland DSL 1-230 is intended to be used for the Network with 1-phase measuring circuit security CBZU-42B. Choke DSL 1-230 playes the role of “artificial zero” which is connected with a measuring relay CBZU-42B.
Choke DSL 1-230 is adapted to a direct work with the lines with a voltage of 230 V or 133V. DSL 1-230 packing gland is designed for mounting on splint TS35.

The resistance value L1 → L2:

9kΩ - 10kΩ

The resistance value L1 → WY:

4,5kΩ - 5kΩ

Operating temperature range:

-10°C do 80°C

Ingress protection:

IP20

Enclosure dimensions:

- lenght: 50 cm
- width: 75 cm
- height: 110 cm

*We reserve the right to change parameters
