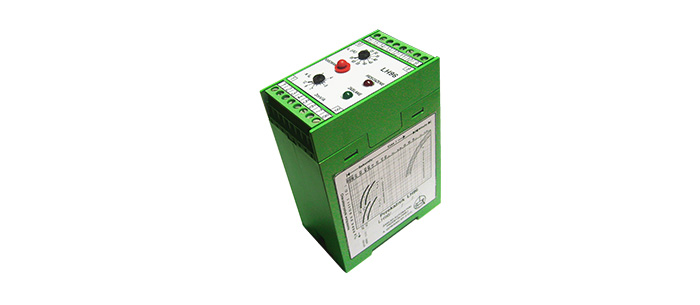

RELAY LH96

Zakład Automatyki Przemysłowej A. OZIMIŃSKI

Relay type LH96 is designer to protect three phase motors and Power grid alternating current from the effects of overloads, short circuits and loss and unbalance. It should be used in conjuction with switches or other fasteners adapted for automatic operation and having a specific ability to turn off short circuit currents. Relay type LH96 is characterised by the following features: operational reliability and accuracy, insensitivity to temperature changes, easy installation and maintenance, small dimensions.

Supply voltage:

42VAC +40% -20%

Power consumption:

<2VA

Multiplicity of an adjustable short-circuit current:

- measuring transformers 3mV/A, 6 ÷ 20A i 20 ÷ 66A
- measuring transformers 1mV/A, 20 ÷ 66A, 60 ÷ 200A i 200 ÷ 660A

Multiplicity of an adjustable rated current:

3...12 In

Max. Contact voltage regulations:

60V

Max contact current regulations:

1A

Operating temperature range:

-10 to 80°C

*We reserve the right to change parameters
