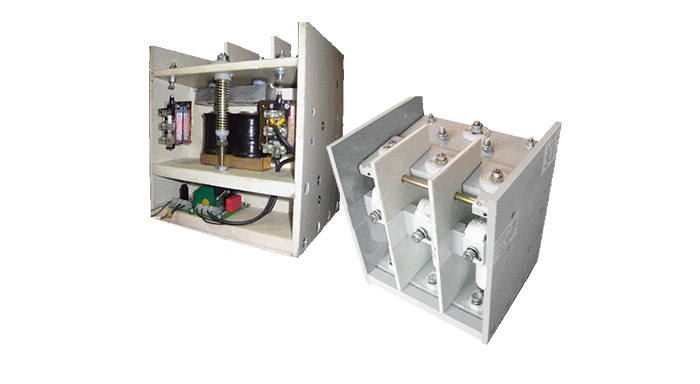

VACUUM CONTACTOR OZ6/400

Zakład Automatyki Przemysłowej A. OZIMIŃSKI

Vacuum contactor type OZ-6/400 is a three phase AC power adapter (applying in circuits of DC is not acceptable) is designed for using in electrical equipment to connect the circuits rated voltage up to 6Kv in terms AC1-AC4. Contactor OZ-6/400 is made for the rated current switching and thermal equal to 400A. Since switching appear in a vacuum chamber and heat losses are small- the contactor is particularly suitable for use in chemical industry, mining industry in sealed enclosures or explosion and wherever required long-term and reliable switching operation. The contactor is made in accordance with the standards: PN-G 50003:2003, PN-EN 60947-4-1: 2001/A2: 2002.

Rated voltage:

6kV

The highest rated switching voltage:

6kV

Test voltage mains frequency:

20kV

Impulse withstand voltage:

40KV

Rated switching current and thermal:

400A

Rated frequency:

50 or 60Hz

Rated peak current:

20kA

Rated short-time withstand current 1-sec.:

8kA

Rated short-time withstand current:

8kA

Rated current short-circuit breaking:

5kA

Switching frequency:

1200/h

Mechanical life:

1x106 cycles

Electrical life:

1x105 cycles

*We reserve the right to change parameters

Rated supply voltage:

230V/50Hz

Tolerance:

+10%/-15% rated voltage

Power consumption closing/holding:

380VA/4,5VA

Average opening time:

30ms

Average closing time:

50ms

Emergency opening time:

≤30ms

*We reserve the right to change parameters

Rated insulation voltage:

500V

Rated continuous:

10A

Number of auxiliary contacts:

4z+1 or 2z+3r or 3z +2r

Clamping screws:

M10

Dimensions:

- length: 275 cm
- width: 230 cm
- height: 300 cm
- weight: 16 kg

*We reserve the right to change parameters

DEPARTMENT HAS A CERTIFIED QUALITY MANAGEMENT SYSTEM ISO 9001: 2009
