CULVERTS MULTICORE TYPE ZAP-PrW 36-…

Zakład Automatyki Przemysłowej A. OZIMIŃSKI

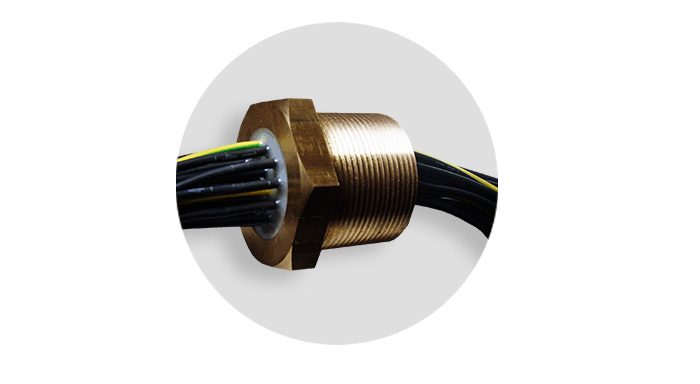

Multicore culverts type ZAP-PRw36 are designed for connection of electrical circuits between the chambers electrical cabinets flameproof explosion-proof Group1. The bushing consists of a metal sleeve with thread M36x1,5 which are located from 3 to 18 cores with diameters ranging from 0,4mm2 to 75mm2, depending on the type and length depends on the application. The space between the sleeve and the pipes is filled with a filling compound. Culverts are adapted to operate at nominal voltages up to 500V-PRW36x1,56H and up to 1000V-PRW-36T…
Feedthrough is made in accordance with standards EN 60079-0:2009 , EN 60079-1:2010 and meets the requirements of the M2. It is mounted in the casing in threaded holes M36x1,5 6H nut and secured.

Rated voltage U0/U:

300V/500V

Level of security:

Section:
- 0,75 mm²
- 1,5 mm²
- 2,5 mm²
- 4 mm²
80°C:
- 9 A
- 14 A
- 21 A
- 30 A
120°C:
- 5 A
- 8 A
- 11 A
- 14 A
Max number of wires:
- 18
- 15
- 10
- 8

Number of wires:

from 3 to 18, each 3

Cable length:

on customer request

Working temperature:

-40°C to +140°C

The length of the body:

35 mm

*We reserve the right to change parameters
