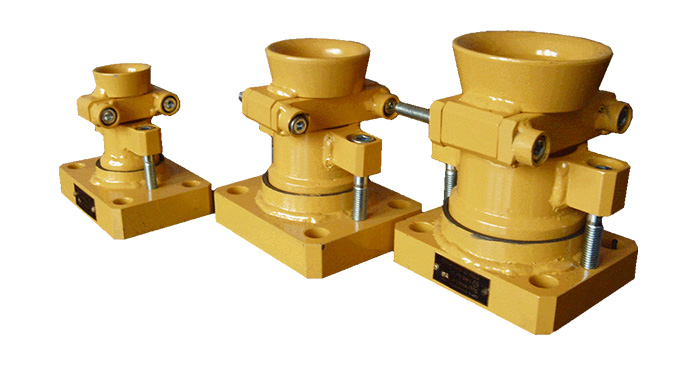

CABLE ENTRIES ZAP WKZ2-D…, ZAP WKZ3-D…
Cable entries are designer to make cables and/Or wires to the flameproof electrical equipment suitable for indor methane and non-methane classified as ”a”, ”b” lub ”c”methane explosion hazard and in headings with class „A” and„B” explosion of coal dust. Inlets type: WkZ2-d47/d55/d80 i WkZ3/d55/ give possibility to introduce the cables with diameters from Ø19 to Ø74. Plugs ZkZ2/3 are used to close unused apertur es In the casing.
Cable entries are made in accordance with the standards: PN-EN 60079-0:2006, PN-EN 60079-1:2004 and meet the requirements of the group and M2.
These drains are installed in a flameproof enclosure through the base groove, which is attached to the chassis using four Allen screws M8x30 for slots Wkz2-d ...or M1-x30to create with her flameproof connector.
Certificate: |
FTZU 07 ATEX 0234U |
Feature of approval: |
I M2 Ex d I Mb |
Level of security: |
IP 54 |
Quality of work: |
Structural steel |
Working temperature: |
-20°C to +80°C |
Relative humidity: |
95% AT temperature to +40°C |
The scope of the external diameters of cables/wires: |
- WkZ2-d47 - from Ø 19 to Ø 26 - WkZ2-d55 - from Ø 24 to Ø 34 - WkZ2-d80 - from Ø 34 to Ø 57 - WkZ3-d55 - from Ø 24 to Ø 34 - WkZ3-d80 - from Ø 34 to Ø 57 - WkZ3-d100 - from Ø 52 to Ø 74 |
Marking: |
The nameplate on the body groove |
*We reserve the right to change parameters
